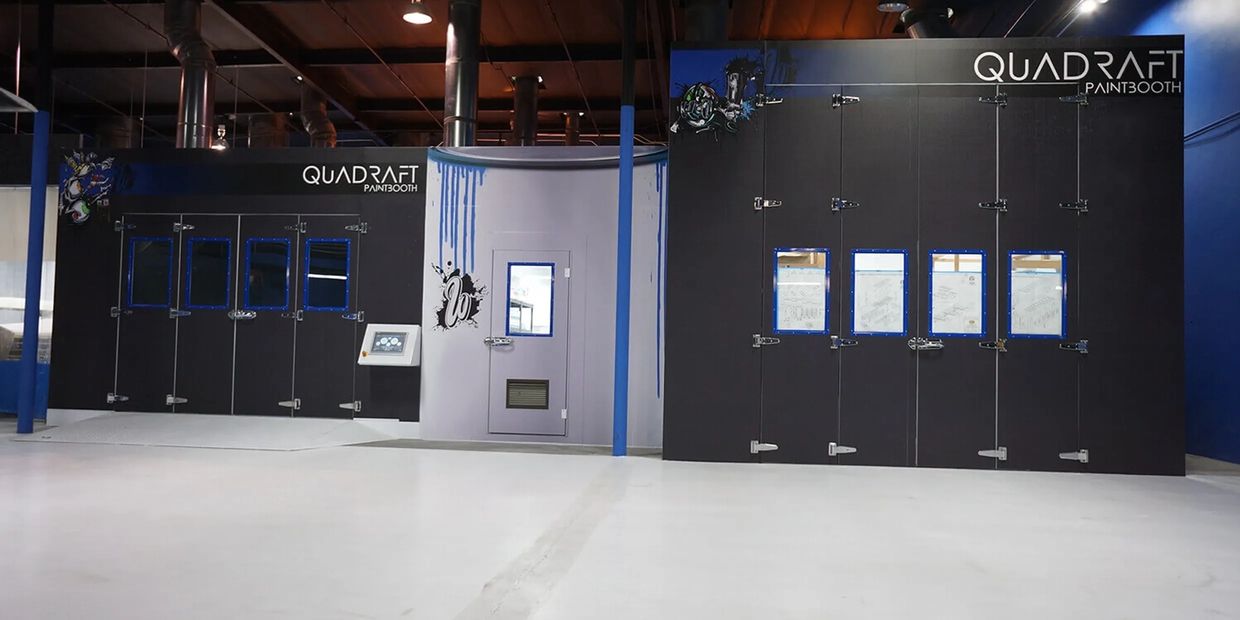

QUADRAFT Downflo Paint Booths (No Pit)

The revolutionary QUADRAFT has become the industry standard for paint booths. TFS continues to set the pace with this new design. This is not just a redesign or enhancement.


The QUADRAFT spray booth was specifically designed to create a virtually turbulence-free airflow through the booth without loss of airflow volume. Drawing on over 30 years experience in spray booths and utilizing the latest in technology, along with computer-aided design, TFS has produced the QUADRAFT, the only truly turbulence-free booth on the market.


The secret is in the design of the walls and the basement. The booth is double-walled, which gives it a distinctive appearance and clean lines. However, the walls also become the exhaust duct by which air is removed from the booth. Each side panel contributes a large area through which the air can move. By using the walls of the booth as the exhaust duct, TFS has achieved an air flow of up to 19,000 CFM, or over six complete changes of air per minute inside the booth. In addition, this integral ducting reduces heat loss through the walls of the booth, resulting in energy savings. This exhaust ducting is combined with our innovative basement design, which utilizes an arrangement of baffles and deflectors to complete the turbulence-free, full down draft airflow path.


The QUADRAFT comes complete with the DFM800R heat system which has a proven track record for reliability and efficiency on TFS spray booths. A user-friendly, but fully automated control panel cycles the booth through the entire flash, cure, and cool cycles without operator intervention. Controls are easily set to accommodate all types of paints and coatings. Digital temperature controls and two stage burner modulation assure minimum temperature fluctuations in the booth. To achieve the higher curing temperatures required by newer paint formulations, a unique TFS designed, 100% fresh air system returns a percentage of the input air past the heater several times before it enters the booth. No solvent contaminated air is returned to the booth, which prevents hazing and die-back, virtually eliminating cutting and buffing.


The QUADRAFT spray booth is designed for raised floor installation, and is available in both solid back and drive thru configurations. It comes with full documentation and all accessories necessary to assemble a fully operational booth.


Note: All of our paint spray booths are California Compliant and Permit acquisition  services are available.

Lets us provide your next Spray Booth!

We would be happy to provide you a customized quote for our Engineering Services, Liquid Spray Booths, Abrasive Blast Booths, Powder Coating Booths, Heated or Non-Heated Air Make-Ups, Permitting Pervices,  Engineering, and Turnkey Installation Services.

Request a Quote

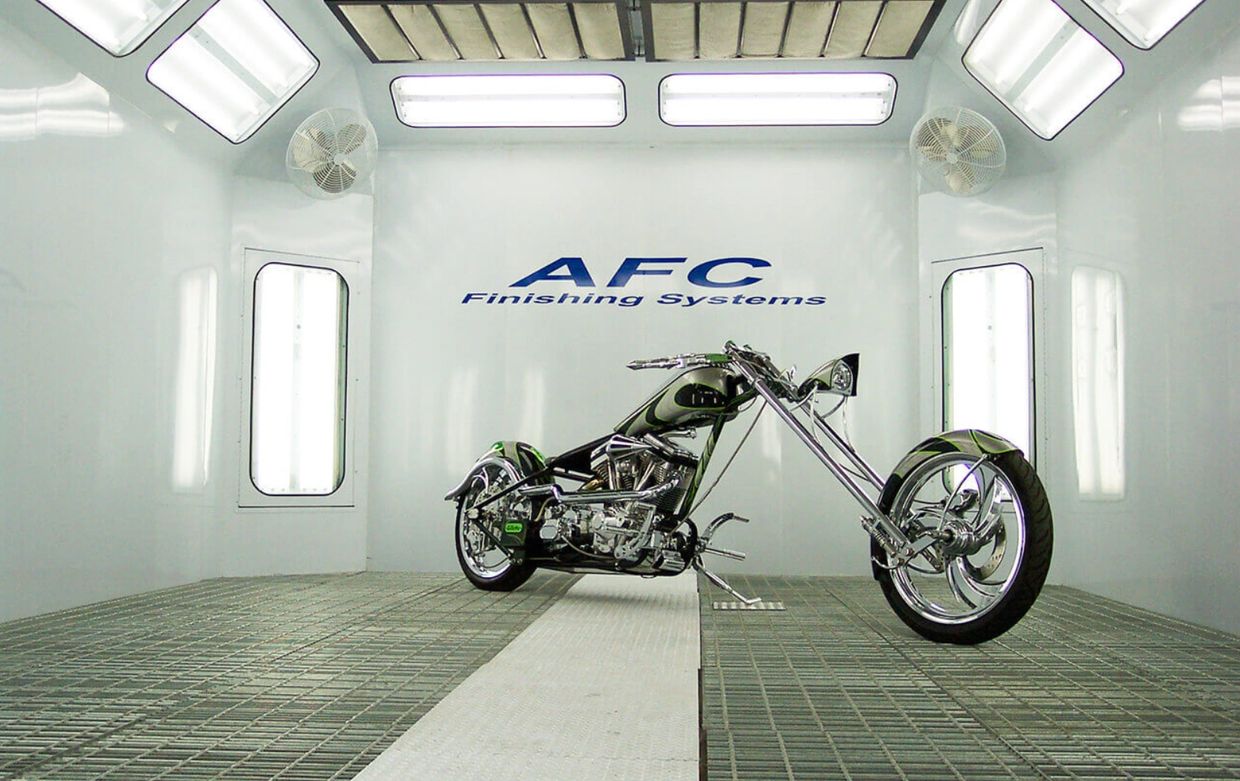

Interior View of a QuadDraft Booth
