Powder Coating Booths

For Batch Operations we offer both Cartridge Filter & spray-to-waste Pocket Filter Booths.

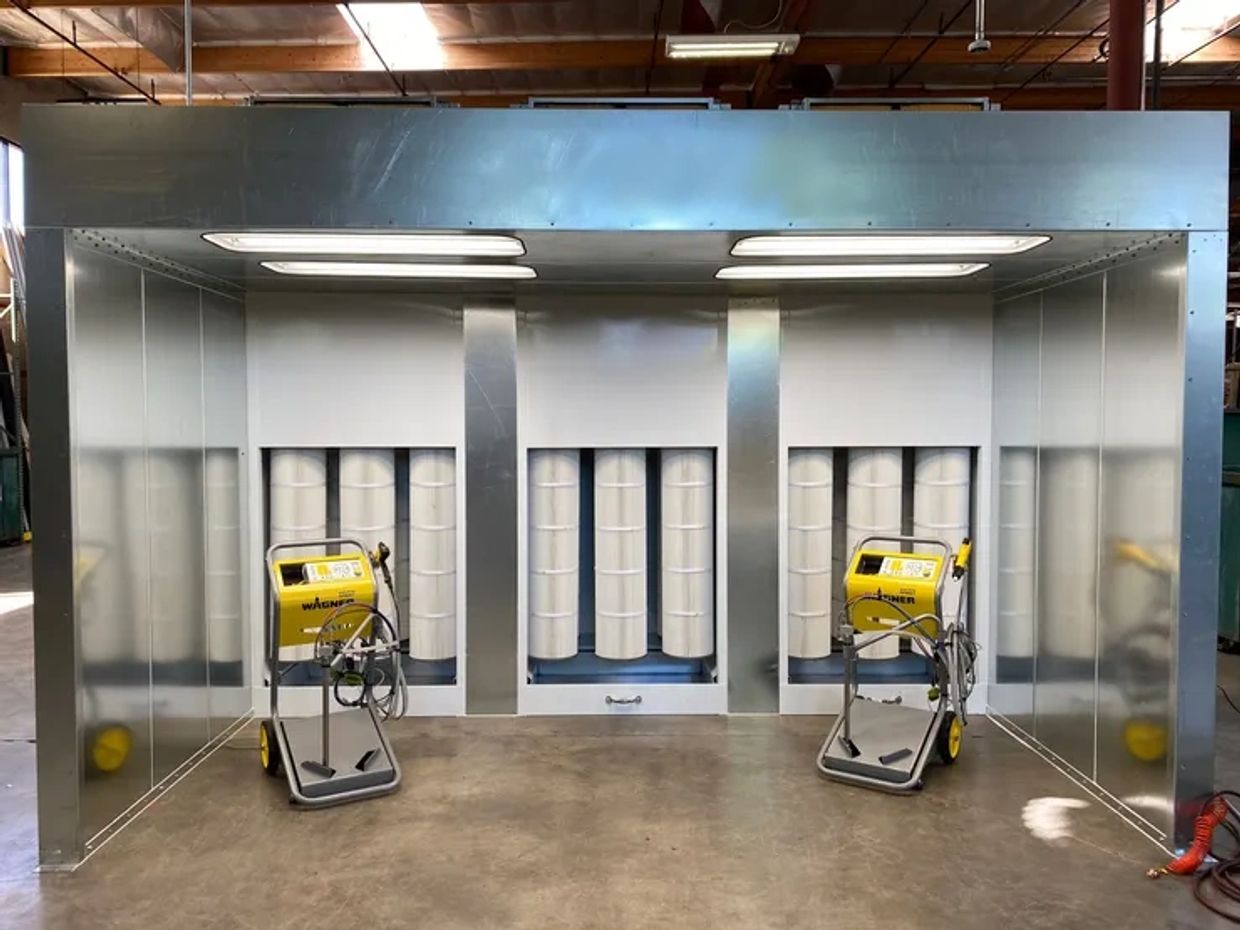

Cartridge Booths

Made for continual batch operations our self cleaning cartridge type booth provide self cleaning technology to prevent down down. Plus our and cartridge modules are an ideal fit at 4' wide that can be added as modules to many booth designs. These configurable modules can be connected to expand with your production requirements.

Pocket Filter Booths use a Two-stage filtering process. (ideal for operations that spray less than 25 Lbs of Powder per day)

Where budget and production volume are limited, our pocket filter booths can be an ideal fit. They utilize a two-stage filtering process with a purge system to clean the cartridge filters. These modules can also be ordered as portable units that can be moved between production areas.

TFS’ s pocket filter booths feature three-stage filtration.The primary filters are polyester ring panels and the secondary filters are a multi-pocket bag style. The final filters, which filter the air before allowing it back into the work area, are a high efficiency box-style pleat.

CODE QUESTIONS?

Check out this guide to CODES from TFS

We at Total Finishing Solutions, LLC understand that the design and implementation of your spray booth can be an extremely challenging and confusing process. It is our goal to provide you with important information to help that process go as smoothly as possible. Although designing the perfect spray booth is very important, designing the booth and complying with all the federal and local safety codes are the most important steps in ensuring the long and continued success, productivity and efficiency of your spray application. We believe that keeping all these codes in mind during the design phase is the only way to prevent any complications down the road.

For this reason, we have provided a summary of important safety code sections of NFPA 33, so that you can better understand the regulatory impact of designing the perfect spray booth for you. The liability to your business for violation can be far-reaching. The Fabricator can’t be too cavalier about these codes and standards.

Download PDF
