Crossflow Booths

The Custom Aire DELUXE Crossflo spray booth has been designed by AFC to meet the need for a quality booth which will provide the best possible trade-offs in price and performance.

The DELUXE Crossflo paint booth does not require a pit or basement which results in a more economical installation. In addition, there are no side exhaust ducts, which gives a large work area inside the booth without excessive loss of floor space around the spray booth.

The DELUXE Crossflo spray booth introduces fresh filtered air evenly from end to end of the booth. The air flows smoothly along the sides of the vehicle, work piece, or part and then is drawn away toward the opposite end of the booth. It then passes through the exhaust arrestors where the overspray is trapped and the air exhausted and dispersed.

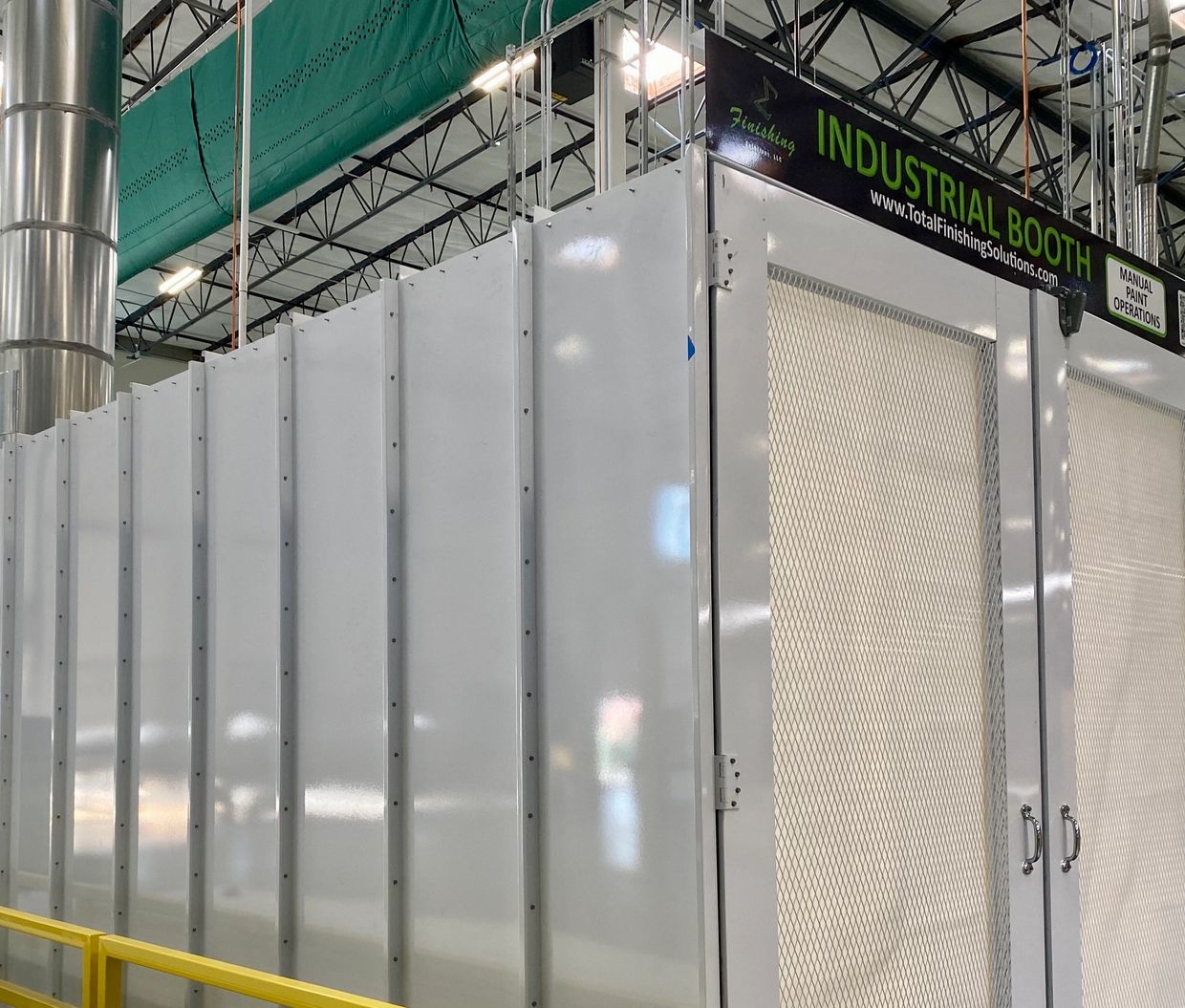

The DELUXE Crossflo paint booths are available in three configurations. The STANDARD configuration has the intake filters located in the doors and the exhaust arrestors at the rear of the booth. The REVERSED configuration shown above has the intake filters at the rear of the booth and the exhaust arrestors to the sides of the drive-in doors. The DRIVE-THRU configuration has the exhaust arrestors to the sides of the solid doors on one end and the intake filters in the doors at the other end.

AFC has been producing superior spray booths for over 30 years. AFC carries a complete line of standard booths to supply any need and budget. In addition to utilizing the latest in materials and technology along with computer-aided design, AFC is able to produce custom booths to meet any requirement.

For increased thru-put, and also for use with newer spray paints and coatings, the custom aire deluxe crossflo spray booth is designed to be used with AFC heat systems. These systems have proven track records for reliability and efficiency on AFC booths. They are weatherproof so they can be mounted on either the roof of the booth or on the roof of the building, depending on individual needs and preferences.

Note: All of our paint spray booths are California Compliant and Permit acquisition services are available.

Lets us provide your next Spray Booth!

We would be happy to provide you a customized quote for our Engineering Services, Liquid Spray Booths, Abrasive Blast Booths, Powder Coating Booths, Heated or Non-Heated Air Make-Ups, Permitting Pervices, Engineering, and Turnkey Installation Services.

Request a Quote

CODE QUESTIONS?

Check out this guide to CODES from TFS

We at Total Finishing Solutions, LLC understand that the design and implementation of your spray booth can be an extremely challenging and confusing process. It is our goal to provide you with important information to help that process go as smoothly as possible. Although designing the perfect spray booth is very important, designing the booth and complying with all the federal and local safety codes are the most important steps in ensuring the long and continued success, productivity and efficiency of your spray application. We believe that keeping all these codes in mind during the design phase is the only way to prevent any complications down the road.

For this reason, we have provided a summary of important safety code sections of NFPA 33, so that you can better understand the regulatory impact of designing the perfect spray booth for you. The liability to your business for violation can be far-reaching. The Fabricator can’t be too cavalier about these codes and standards.

Download PDF
